Nexo PS 15 Midrange Speaker

Nexo PS 15 Midrange Speaker is a high power system capable of producing 136dB Peak SPL, the new Nexo PS 15 Midrange Speaker -R2 Loudspeaker can be safely driven with up to 2000 Watts of amplifier power. Controlled by the new, dedicated PS 15 TD Controller-R2, or the NXAMP Powered Controller, the PS15-R2 achieves high SPLs and wide bandwidth performance, despite being only half the weight and volume of common trapezoidal loudspeaker systems.

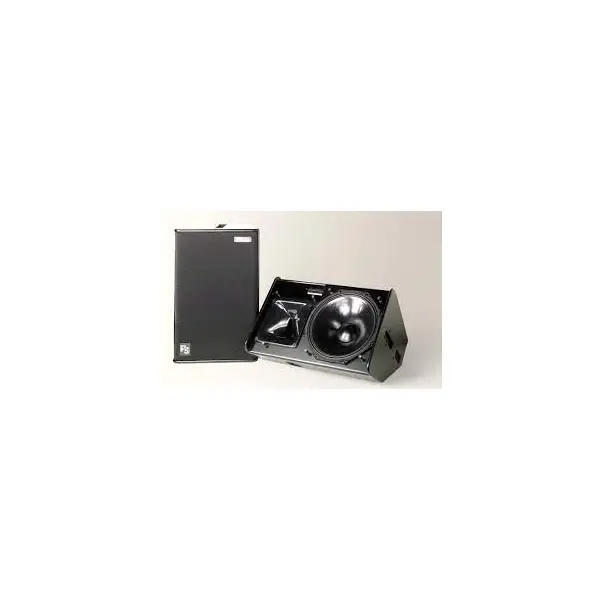

Left and Right versions of the PS15-R2 have been developed to provide a true stereo image, particularly important for wedge applications.

Applications

• High power touring, installed PA for clubs, A/V, theater, broadcast, etc.
• High quality, extremely powerful stage monitoring for clubs, A/V, theater, broadcast, etc.
• Fill-in system

Midrange Speaker Specifications

Nexo PS 15 Midrange Speaker  R2 – Left Optimised

Components LF 1 x 15″ (38 cm) long excursion Neodymium 8-ohm driver.
HF 1 x 2″ throat, 3″ Titanium diaphragm compression driver + Low Distortion,
Constant Directivity Asymmetrical Dispersion Horn.
Height x Width x Depth 675 x 434 x 368 mm (26.57″ x 17.08″ x 14.48″).
Weight 28 kg (62 lbs).
Speakon Connectors 2×4 pole in & loop thru (switch passive to active inside).
Construction Baltic Birch Ply finished with textured black coating.
Fittings Handles 2 metal recessed pockets.
Front Finish Moulded dark grey metal grille.
Flying Points Two plate connecting with external accessories.
Stand fittings Built in steel stand fitting (35mm / 1 3/8″).

Nexo PS15-R2 Specification with PS15TD R2 Controller
Frequency Response 50 Hz – 18 kHz ±3 dB.
Usable Range @-6dB 47 Hz – 18 kHz.
Sensitivity 1W @ 1m 102 dB SPL Nominal / 99 dB SPL Wideband.
Nominal Peak SPL @ 1m (b) 133 to 136 dB Peak.
HF Dispersion 50° to 100° Horizontal x 55° Vertical Rotatable Horn, 4 positions.
Directivity : Q & DI Q : 16 Nominal / DI : 12 dB Nominal ( 1.5 kHz ).
Crossover Frequencies 1.1 kHz Passive or Active (internally switchable).
Nominal Impedance Passive 8-ohm or Active LF 8-ohm, HF 16-ohm.

Recommended Amplifiers
Passive 1000W – 2000W into 8-ohm.
Active LF 1000 – 2000 W 8-ohm / HF 250 – 500 W 16-ohm
Important: Active mode only available on NXAMP.

The Nexo PS 15 Midrange speaker offers quality Sound. If you are looking for Speakers with bass, then this is your Speaker. The Speaker has the best bass speakers price in Kenya. The speakers’ price in Kenya is affordable and worth every penny in comparison to what it brings to the table .
