RCF V Max V45 speaker
RCF VMAX Overview

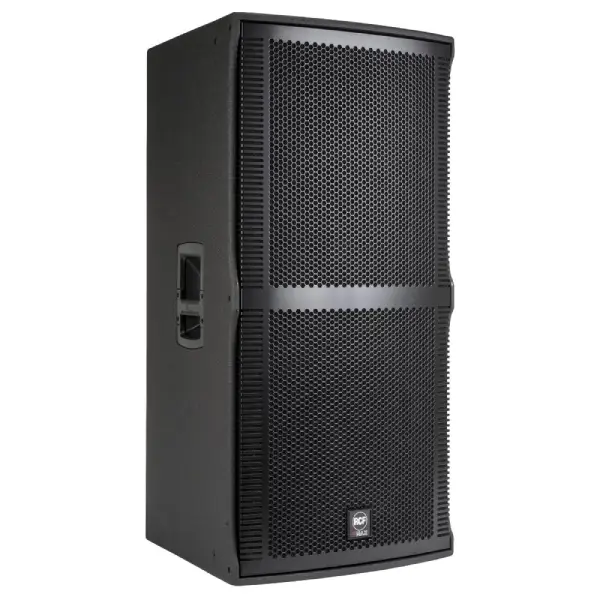

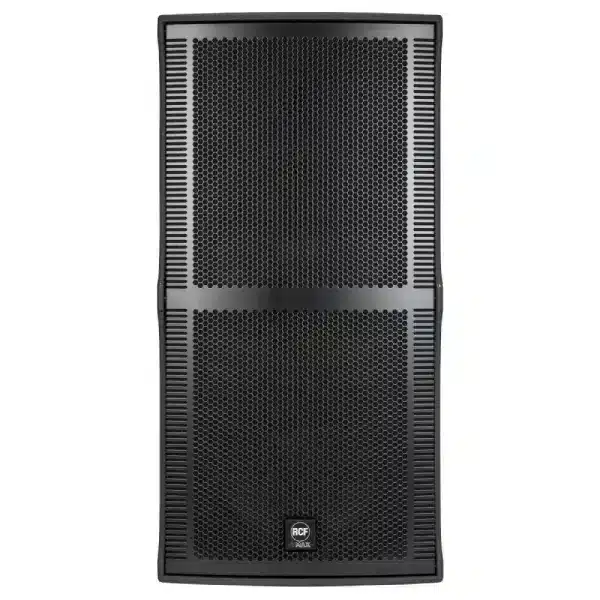

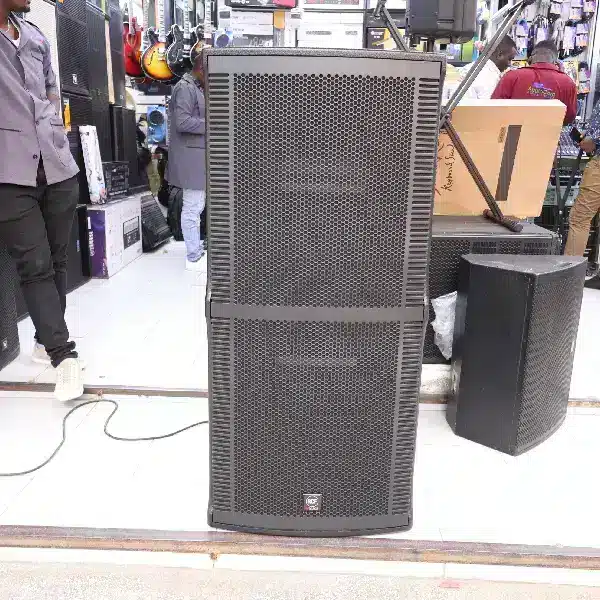

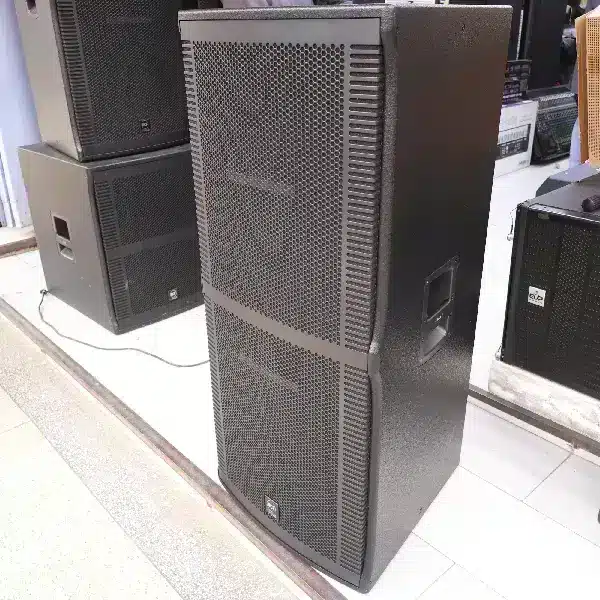

The V45 2-Way Full Range Passive Loudspeaker from RCF is a two-way full range loudspeaker system that incorporate 2 x 15” LF transducers and a compression driver. The LF drivers are equipped with a 4″ voice coil and ferrite motor mounted in a vented enclosure with optimized front loading. It features a 4″ HF titanium compression driver, loaded on a constant directivity horn with a perfect coverage of 90° x 40°.
KSh 45,000.00
Description
RCF v max Overview
The V45 2-Way Full Range Passive Loudspeaker from RCF is a two-way full range loudspeaker system that incorporate 2 x 15” LF transducers and a compression driver. The LF drivers are equipped with a 4″ voice coil and ferrite motor mounted in a vented enclosure with optimized front loading. It features a 4″ HF titanium compression driver, loaded on a constant directivity horn with a perfect coverage of 90° x 40°.
It offers substantial power and efficiency for a variety of professional applications that include portable systems, primary sound reinforcement, plus permanent installations, and supplementary fill for larger systems. The high-frequency section is a constant directivity CMD (Constant Matching Design) horn in relation to the woofer system, loaded on a neodymium compression driver with a 4″ titanium diaphragm assembly for smooth, controlled dispersion.

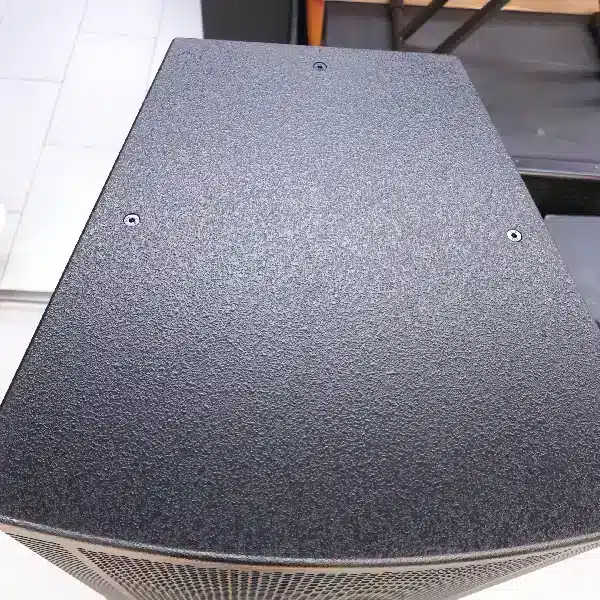

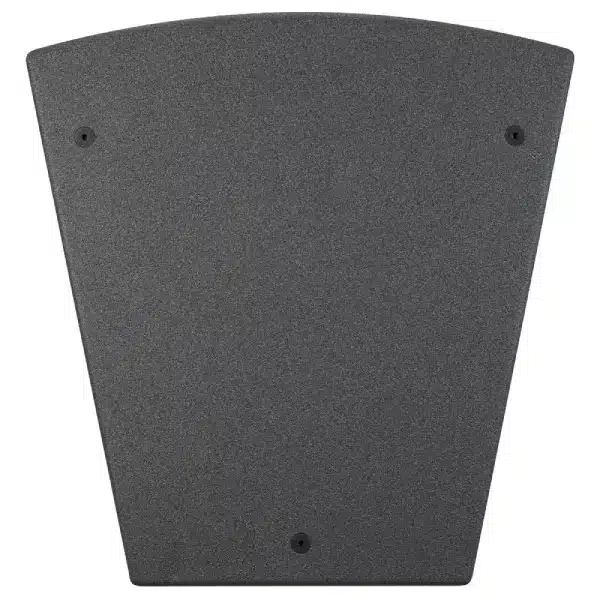

The two 15″ low-frequency transducers are equipped with a 4” voice coil. The system includes a high-level crossover network that features markedly lower (than conventional) induction values in series with the woofer. This innovation is called LICC (Low Impedance Compensated Crossover). The benefit is delay reduction, reduced phase shift and superior transient response. Dynamic high-frequency driver protection is accomplished with a bulb lamp dynamic chosen to complement the power curve of the driver. The cabinet shape will allow the V45 to be used in the standard configuration as well as in stage monitor model. Furthermore, M10 threaded inserts are provided for optional mounting hardware in installed sound applications. A rugged steel pole mount is being installed at the bottom.
The RCF V45 IS is a high-performance two-way full-range loudspeaker system designed for a wide variety of professional audio applications. Known for its exceptional sound clarity, robust construction, and versatile mounting options, the V45 IS is suitable for live sound reinforcement, fixed installations, and portable PA systems.
Key Features:
Specifications:
- System Type: Two-way full-range loudspeaker
- Frequency Response: 45 Hz – 20 kHz
- Power Handling: 450W continuous, 1800W peak
- Sensitivity: 99 dB SPL (1W/1m)
- Maximum SPL: 133 dB
- Woofer: 15-inch high-efficiency woofer
- Tweeter: 1.4-inch compression driver with titanium diaphragm
- Nominal Impedance: 8 ohms
- Crossover Frequency: 1.2 kHz

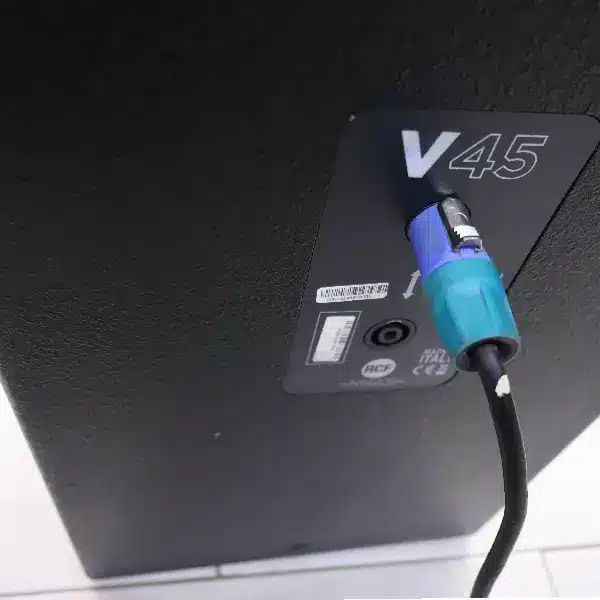

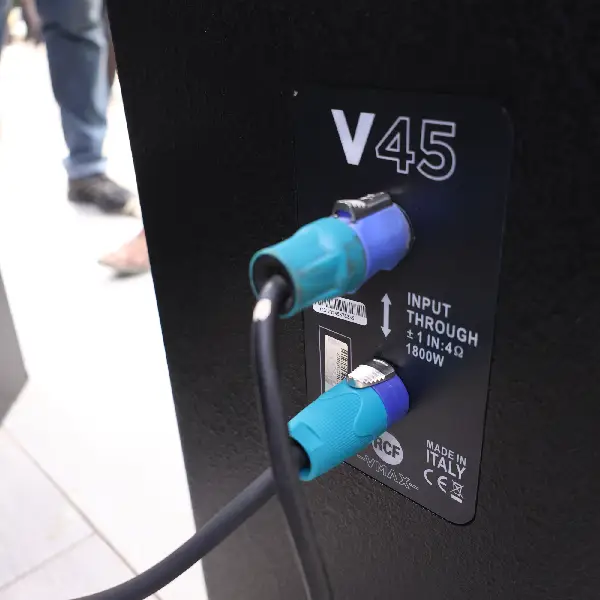

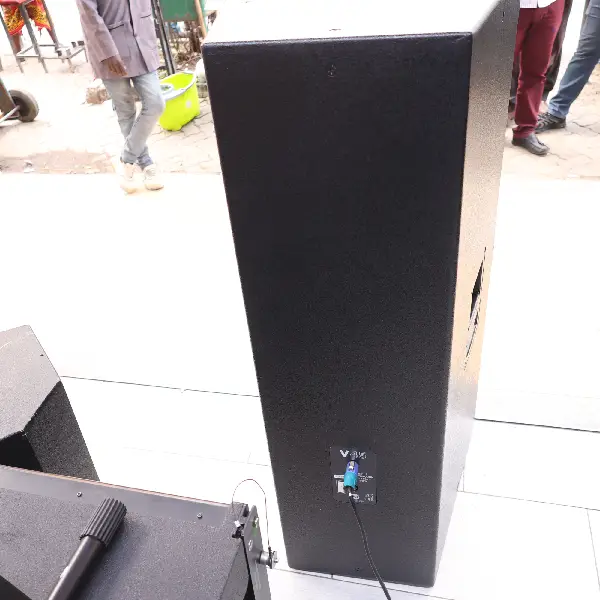

- Input Connectors: Dual Neutrik SpeakON NL4
- Dimensions (H x W x D): 700 mm x 430 mm x 445 mm (27.6 in x 16.9 in x 17.5 in)
- Weight: 30 kg (66.1 lbs)
- Cabinet Material: Birch plywood
- Finish: Textured black coating
- Mounting Options: Integrated pole mount socket, multiple M10 fly points
Applications:
- Live Sound Reinforcement: Ideal for concerts, gigs, and live performances, providing powerful and clear sound for both musicians and audiences.
- Fixed Installations: Suitable for permanent installation in venues such as theaters, houses of worship, clubs, and conference halls.
- Portable PA Systems: Great for mobile DJs, event organizers, and rental companies needing reliable and high-quality sound reinforcement.
- Stage Monitoring: Can be used as a floor monitor for performers, delivering accurate sound on stage.
Benefits:
- Exceptional Audio Performance: The two-way design and high-quality components ensure superior sound clarity and detail across all frequencies.
- High Power and SPL: Capable of handling high power and delivering loud, clear sound without distortion, making it suitable for large venues and outdoor events.
- Durable Construction: Built to last with a rugged cabinet and protective grille, ensuring longevity even in demanding environments.
- Versatile Mounting: Multiple mounting options provide flexibility for various setups, whether for portable use or fixed installations.
- Reliable Connectivity: Dual Neutrik SpeakON connectors ensure secure and reliable connections, minimizing the risk of connectivity issues during performances.
The RCF V45 IS is a versatile and powerful loudspeaker system designed to meet the needs of professional audio engineers, musicians, and event organizers. With its exceptional sound quality, robust construction, and flexible mounting options, the V45 IS is an excellent choice for any audio application requiring reliable and high-performance sound reinforcement.
