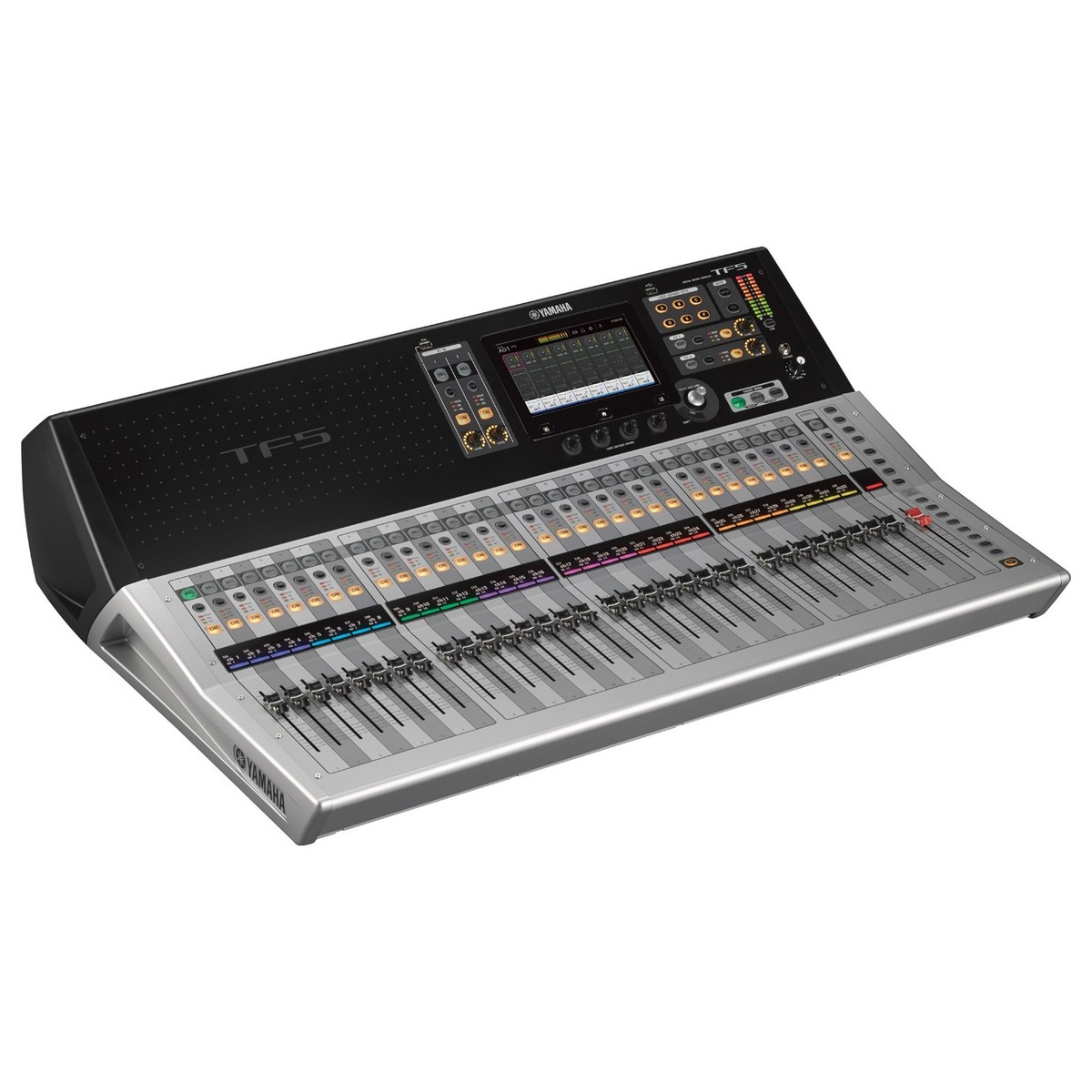

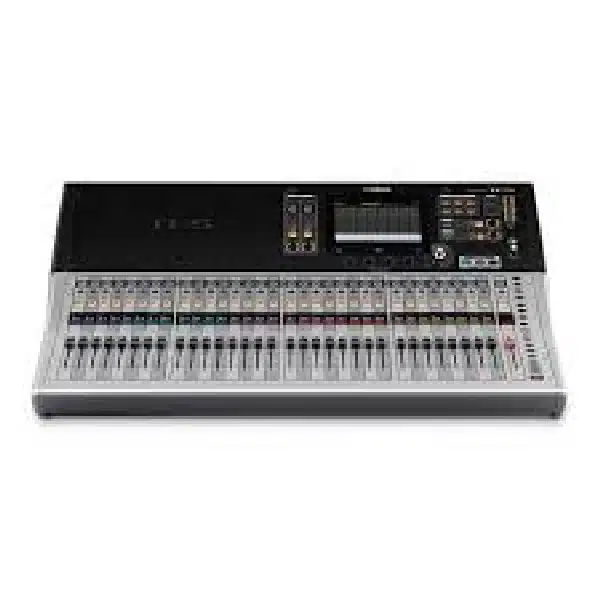

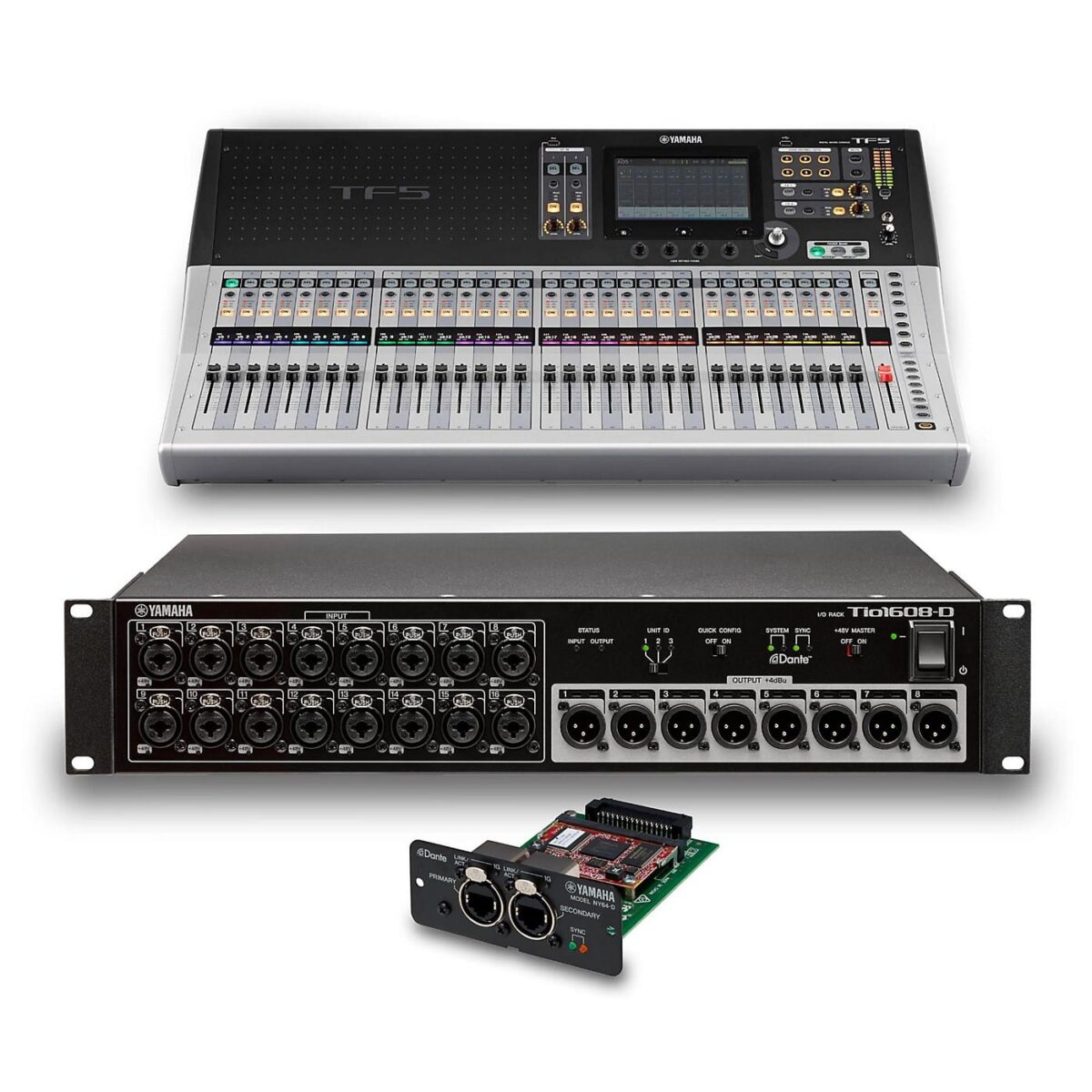

Yamaha TF5 Digital Mixer

About this item

32-input TF Series Digital Mixer with 48 Mixing Channels
8 DCA Groups with Roll-out
1-knob Compression/EQ
Touch Flow Operation
33 Motorized Faders

Add to compare

Add to wishlist

3 People watching this product now!

Description

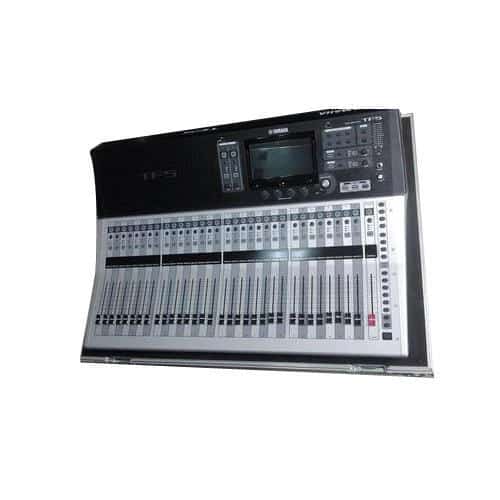

Yamaha TF5 Digital Mixer

High input capacity and fader count make this powerful console ideal for larger applications.

Brand	Yamaha
Number of Channels	32
Item Dimensions LxWxH	34.09 x 23.58 x 8.66 inches
Item Weight	20 Kilograms
Connectivity Technology	Auxiliary

About this item

32-input TF Series Digital Mixer with 48 Mixing Channels
8 DCA Groups with Roll-out
1-knob Compression/EQ
Touch Flow Operation
33 Motorized Faders

		TF5	TF3
Outline
Fader Configuration		32 + 1 (Master)	24 + 1 (Master)
Mixing Capacity	Input Channels	48 (40 mono + 2 stereo + 2 return)	48 (40 mono + 2 stereo + 2 return)
	Aux Buses	20 (8 mono + 6 stereo)	20 (8 mono + 6 stereo)
	Stereo Buses	1	1
	Sub Buses	1	1
Input channel functions		8 DCA Groups	8 DCA Groups

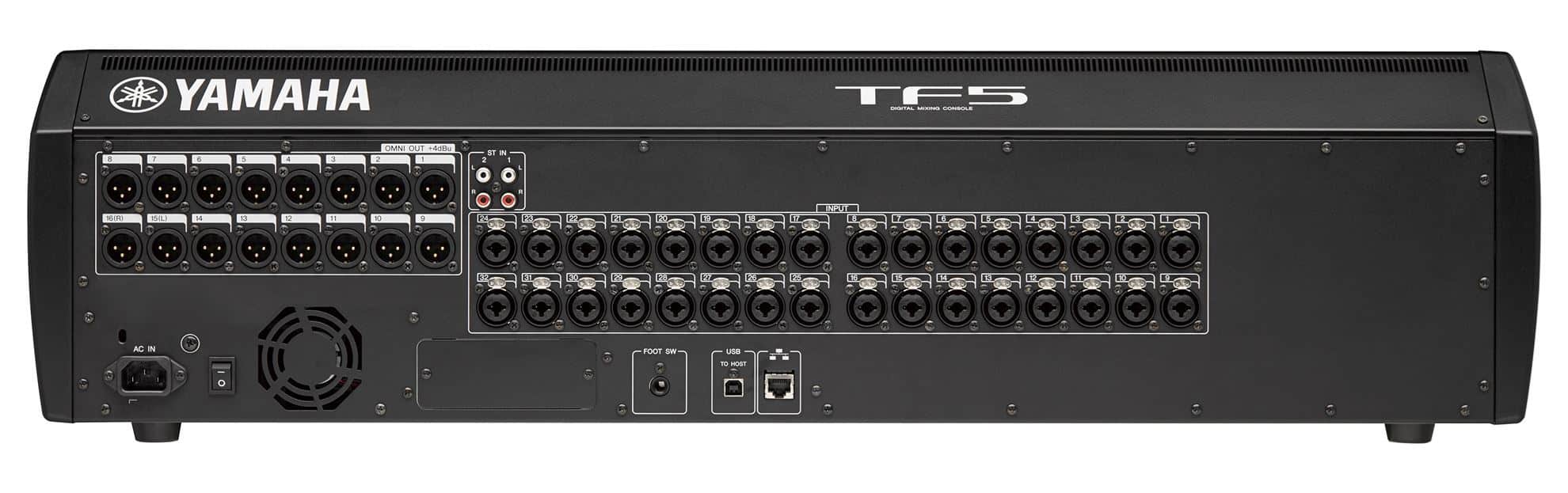

I/O	Inputs	32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)	24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
	Outputs	16 (XLR)	16 (XLR)
	Expansion slots	1	1
On-board processors	DSP	8 Effects + 10 GEQ	8 Effects + 10 GEQ
USB		34×34 USB Audio Interface, 2-track recording via USB Storage Device	34×34 USB Audio Interface, 2-track recording via USB Storage Device
General specifications
Sampling frequency rate	Internal	48 kHz	48 kHz
Signal delay		Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz	Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader		100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders	100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortion		Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)	Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response		+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT	+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range		110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.	110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level	Equivalent input noise	–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)	–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Hum & noise level	Residual output noise	–85 dBu, ST master off (Measured with an A-Weight filter)	–85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk		–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.	–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements		100–240 V 50/60 Hz	100–240 V 50/60 Hz
Power consumption		120 W	110 W
Dimensions	W	866 mm (34.1in)	716 mm (28.2in)
	H	225 mm (8.9in)	225 mm (8.9in)
	D	599 mm (23.6in)	599 mm (23.6in)
Net weight		20.0 kg (44.1lb)	17.0 kg (37.5lb)
Accessories		Quick Guide, Power Cord, NUENDO LIVE (DAW Software)	Quick Guide, Power Cord, NUENDO LIVE (DAW Software)
Options		Expansion Card, Foot Switch (FC5)	Expansion Card, Foot Switch (FC5)
Others		Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C	Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C

Recording/Playback

PC/Mac (USB2.0)	Recording 34 tracks, Playback 34 tracks
USB Storage Device	Recording 2 tracks (USB hard drive/ SSD) ^*, Playback 2 tracks (USB hard drive/ SSD/ thumb drive)

*Please note – USB thumb drives are not supported by TF for recording purposes. Please refer to this link for compatible hard drives.

Analog Input Characteristics

Input Terminals	GAIN	Load Impedance	For Use With Nominal	Input Level			Connector	Balanced / Unbalanced
Input Terminals	GAIN	Load Impedance	For Use With Nominal	Sensitivity ^*1	Nominal	Max. before clip	Connector	Balanced / Unbalanced
INPUT1-32 (TF5) INPUT1-24 (TF3) INPUT1-16 (TF1)	+66dB	7.5kΩ	50-600Ω Mics or 600Ω Lines	-82dBu (61.6μV)	-62dBu (0.616mV)	-42dBu (6.16mV)	Combo Jack (XLR-3-31 type ^2 or TRS phone ^3)	Balanced
INPUT1-32 (TF5) INPUT1-24 (TF3) INPUT1-16 (TF1)	-6dB	7.5kΩ	50-600Ω Mics or 600Ω Lines	-10dBu (245mV)	+10dBu (2.45V)	+30dBu (24.5V)	Combo Jack (XLR-3-31 type ^2 or TRS phone ^3)	Balanced
ST IN 1,2	–	10kΩ	600Ω Lines	-30dBV (31.6μV)	-10dBV (316mV)	+10dBV (3.16V)	RCA Pin Jack	Unbalanced

*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*4. In these specifications, 0dBu = 0.775Vrms.
*5. +48V DC (phantom power) can be supplied to INPUT XLR-type connectors via each individual software-controlled switch.
